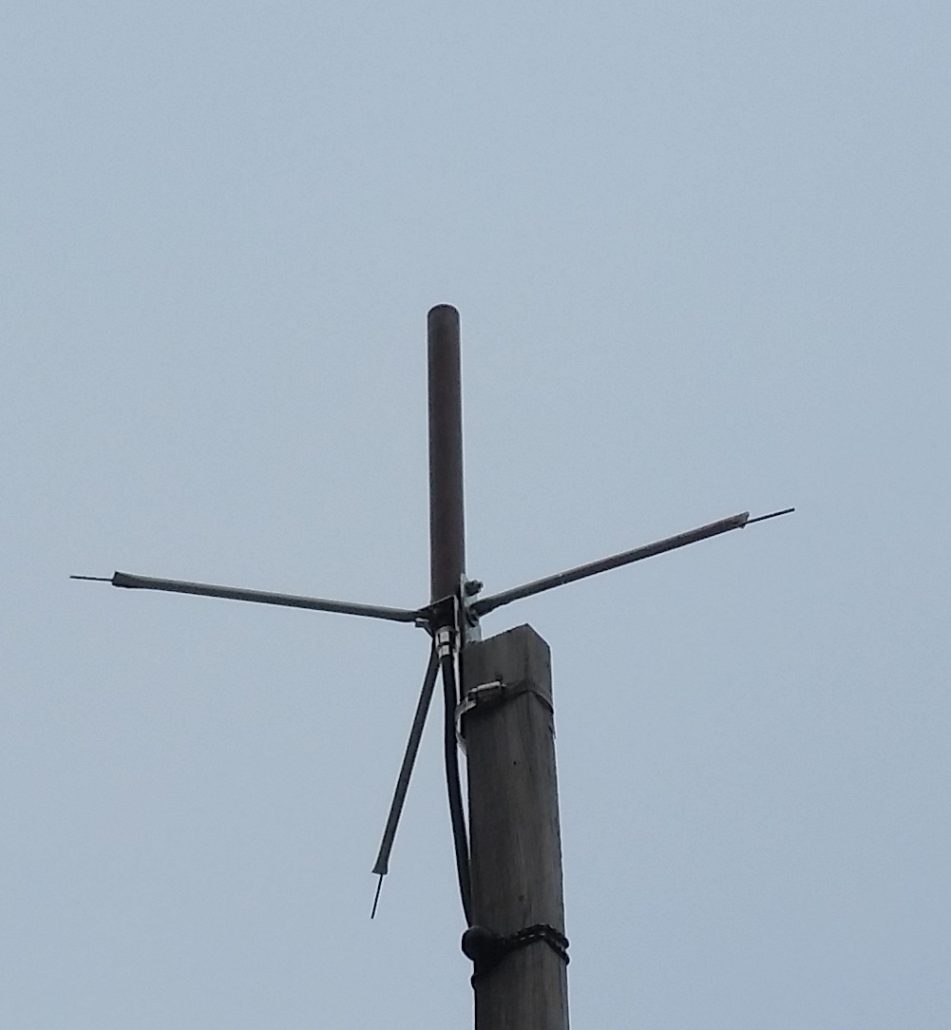

I was sent an Icom IC-37A by a generous ham in Ohio (N9YLA). I made 2 simple dipoles from metal rod and another from aluminum tv antenna elements. Both were -very- narrow banded and were fed w 75 ohm coax. Finally I used a scrap piece of copper pipe for the main radiating element and tv radials for…. radials! 75 ohm coax still not working well. Antenna was narrow and just not making me happy. Finally I remembered a scrap of 50 ohm coax I had and ran it. After adjusting angle and shortening length of radials I ended up with fantastic results. WIDE banded right where I needed it and flat where I wanted it! (<1.2:1 from 220 to 225MHz and 1:1 at 222MHz- BOOM! The ham band is...... 222 to 225MHz!) 1/3/17 Added SO-239 connector and replaced insulator w PVC.

Roller blade nylon busing used to insulate bolt holding copper tube

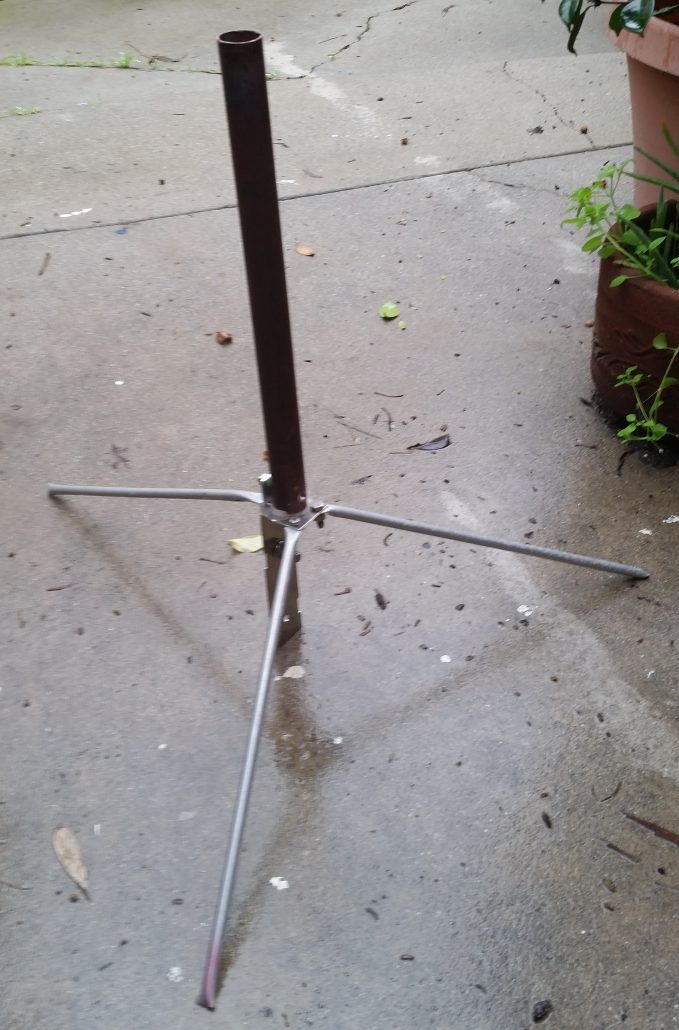

220MHz ant v3 75ohm coax

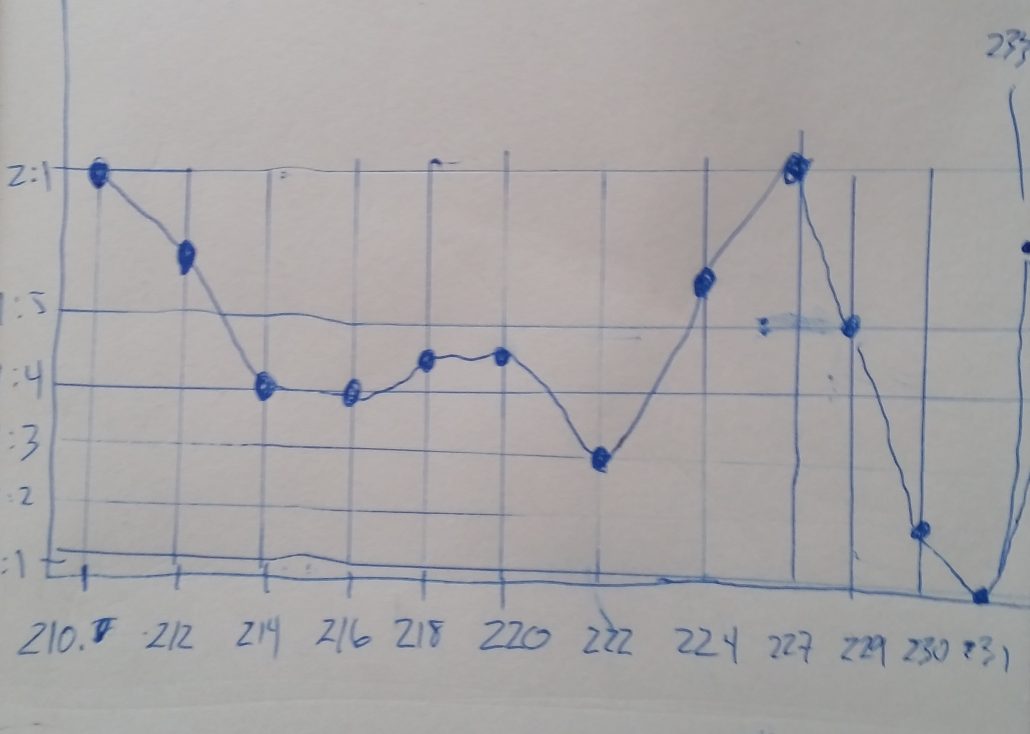

220 v3 first check- not so good…

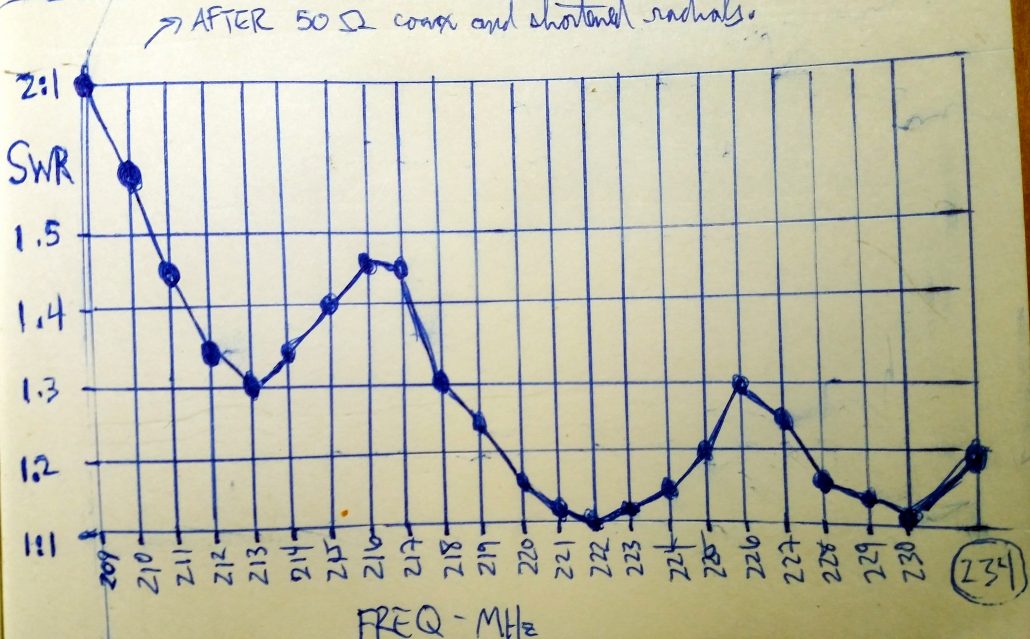

after 50ohm coax and shortened radials

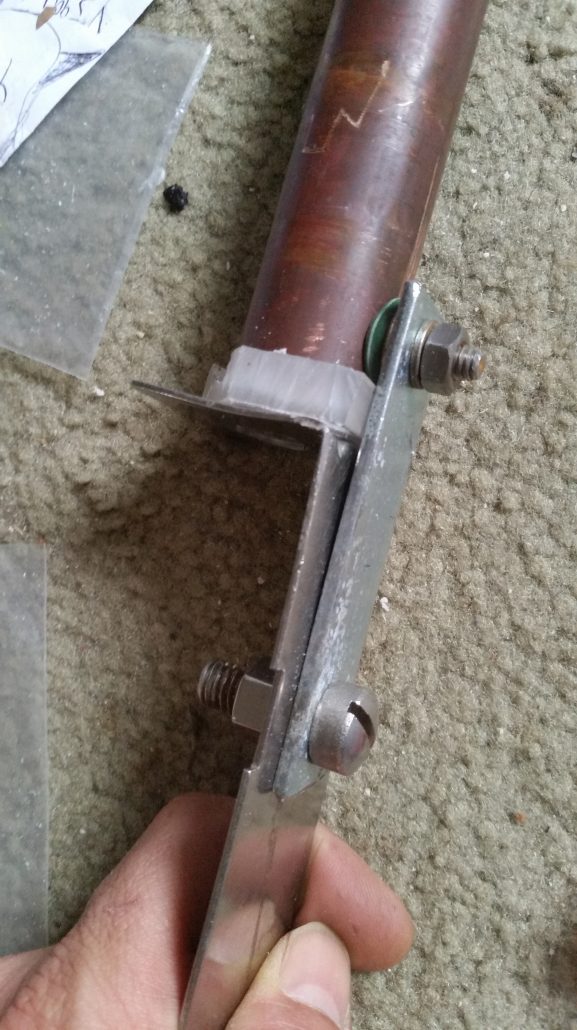

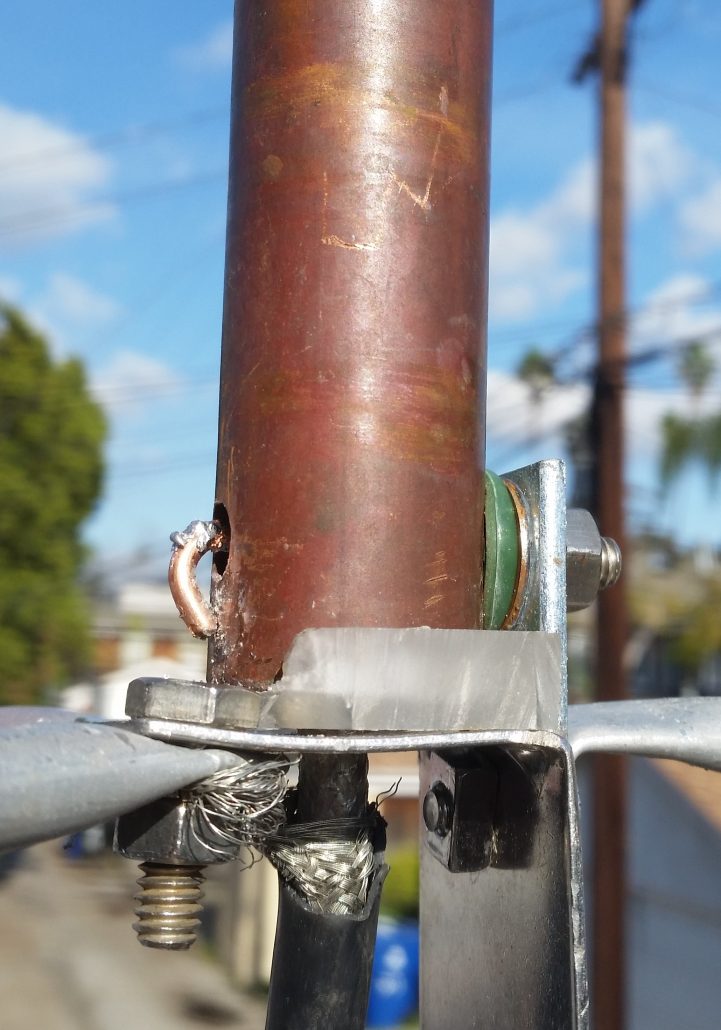

insulation detail

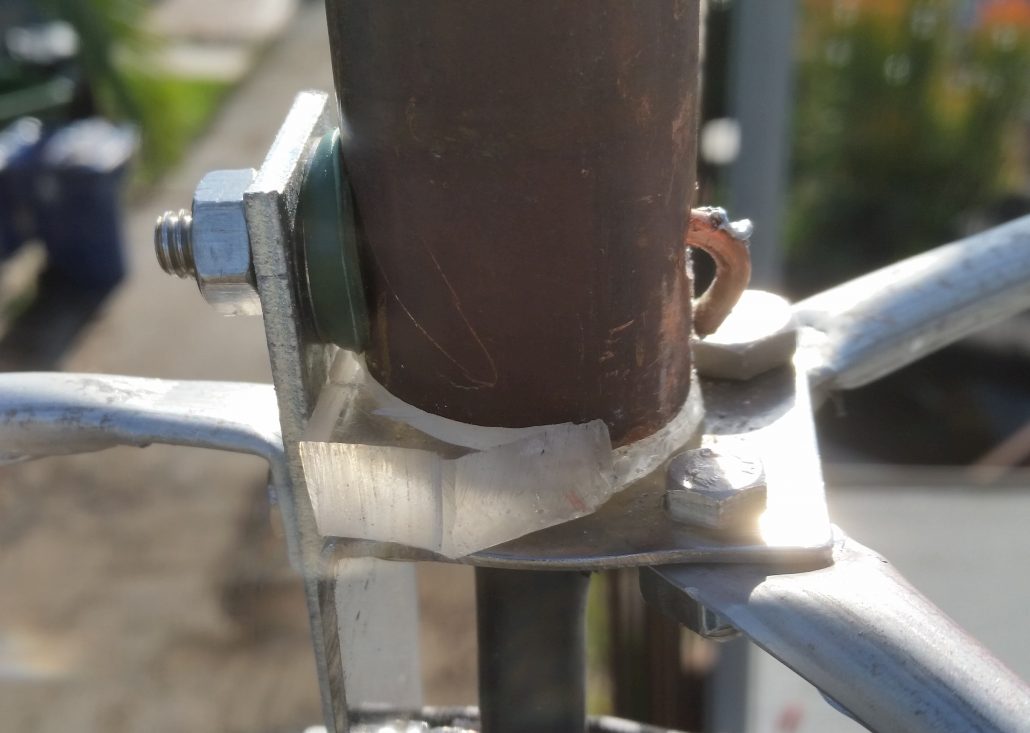

insulation detail

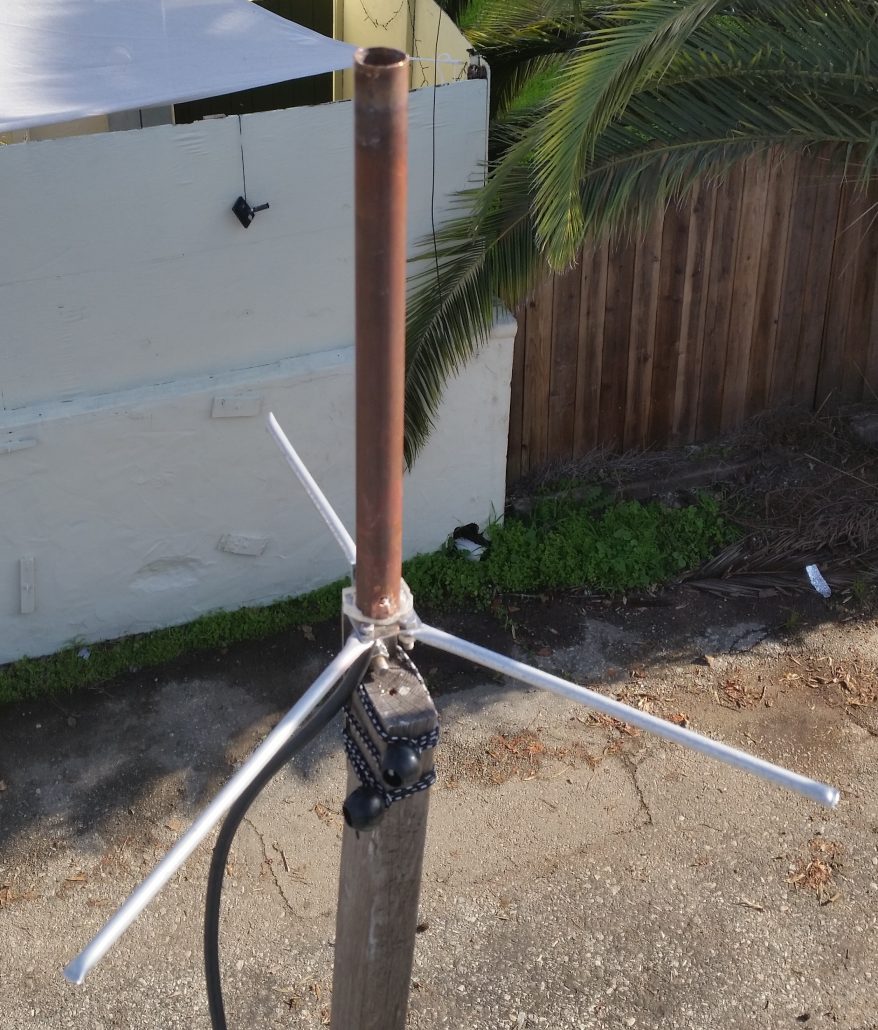

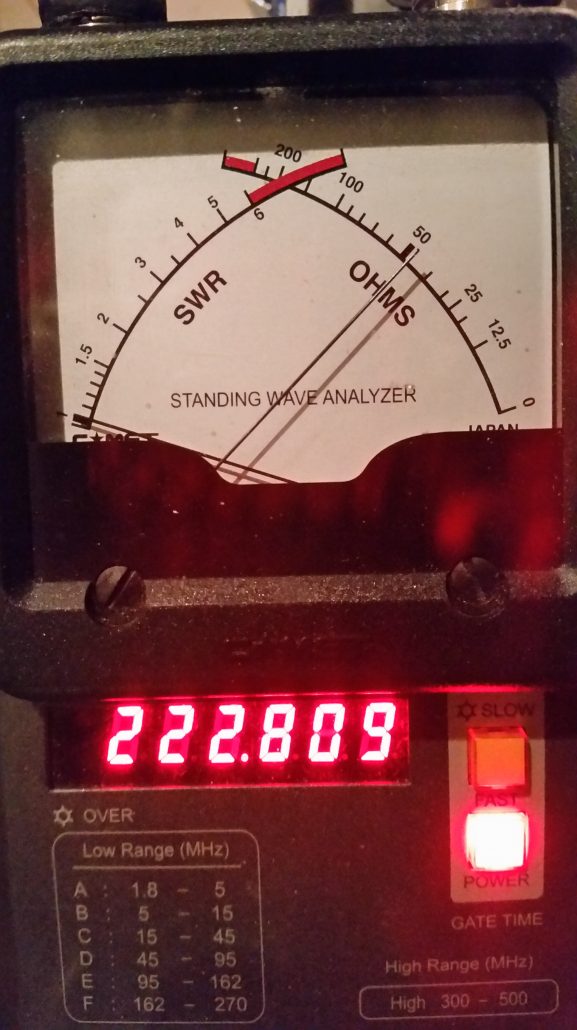

yeah!!

<1.2 from 220 to 225MHz!!!

and 230MHz and beyond…

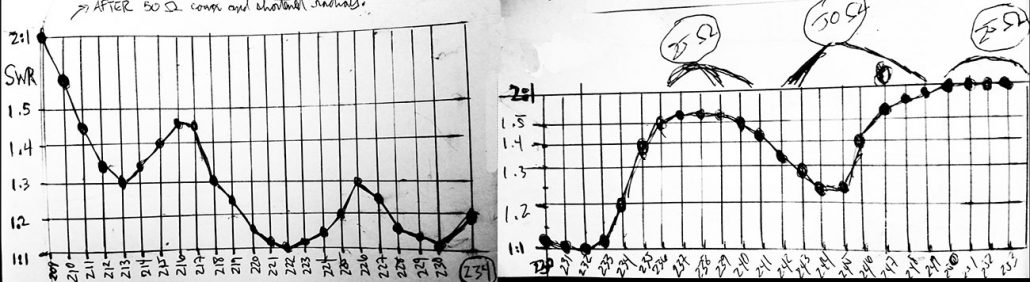

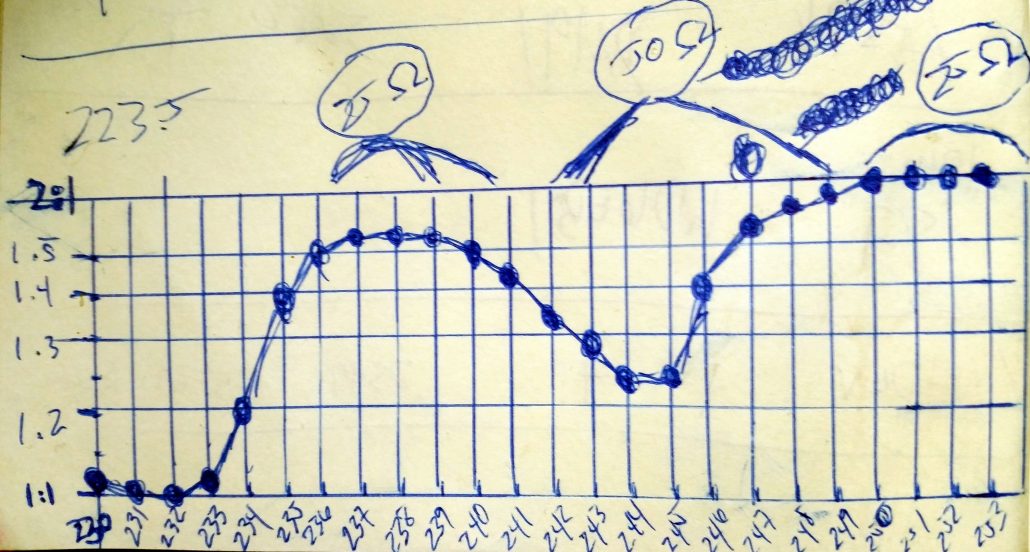

209 to 253MHz graph

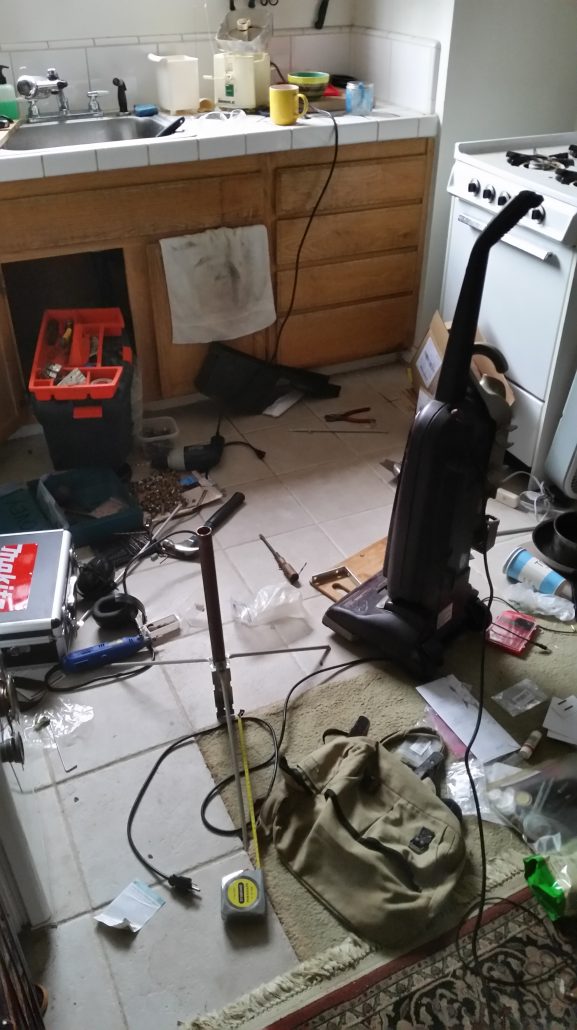

the “workshop”

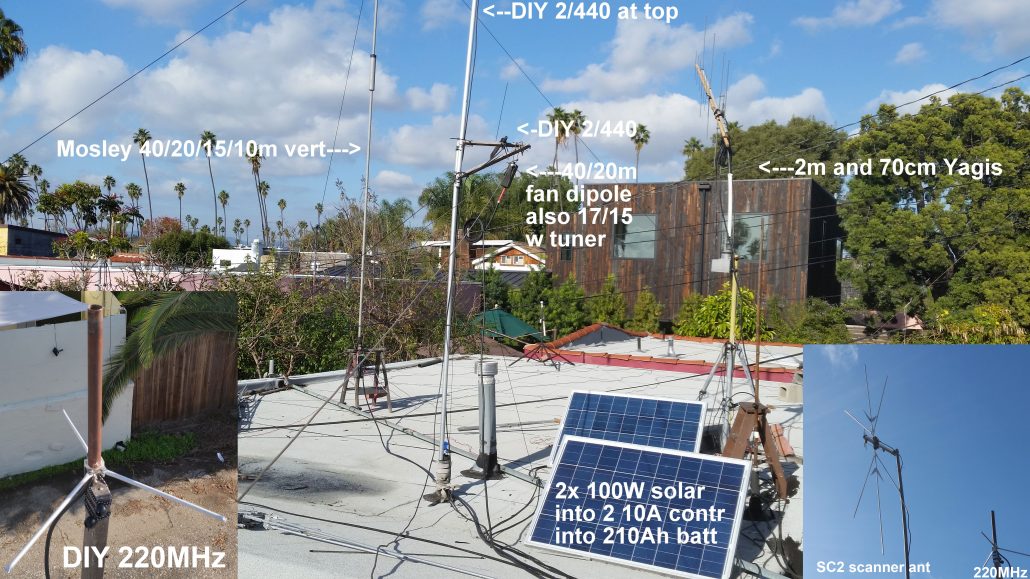

KK6QMS-010117

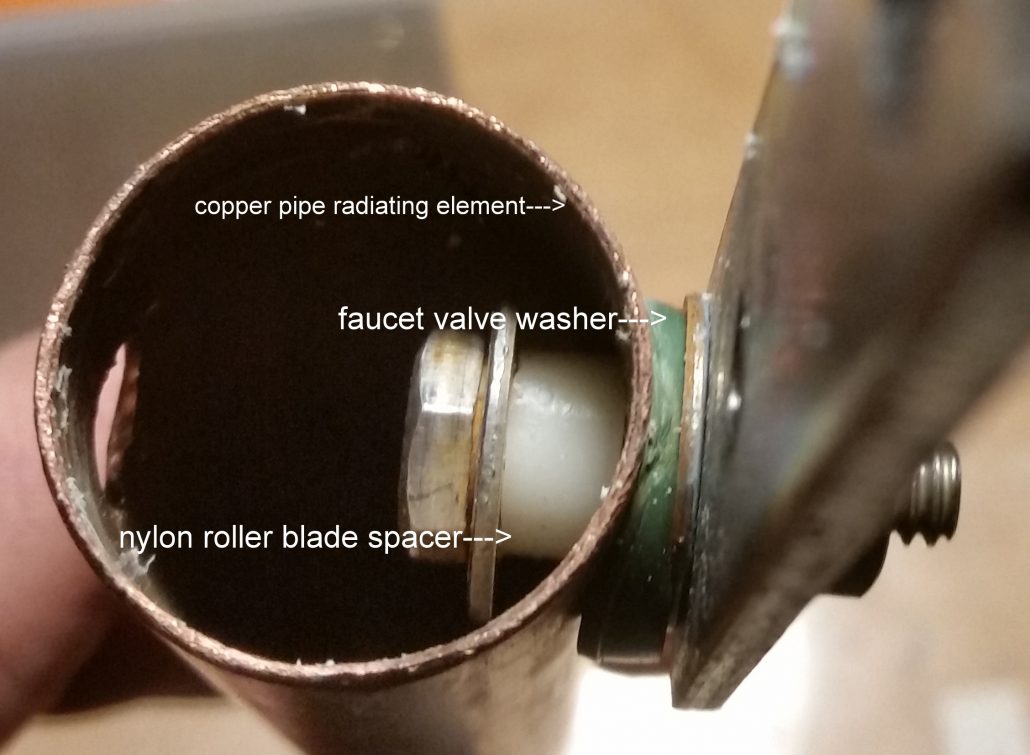

MODS 1/4/17- insulator detail

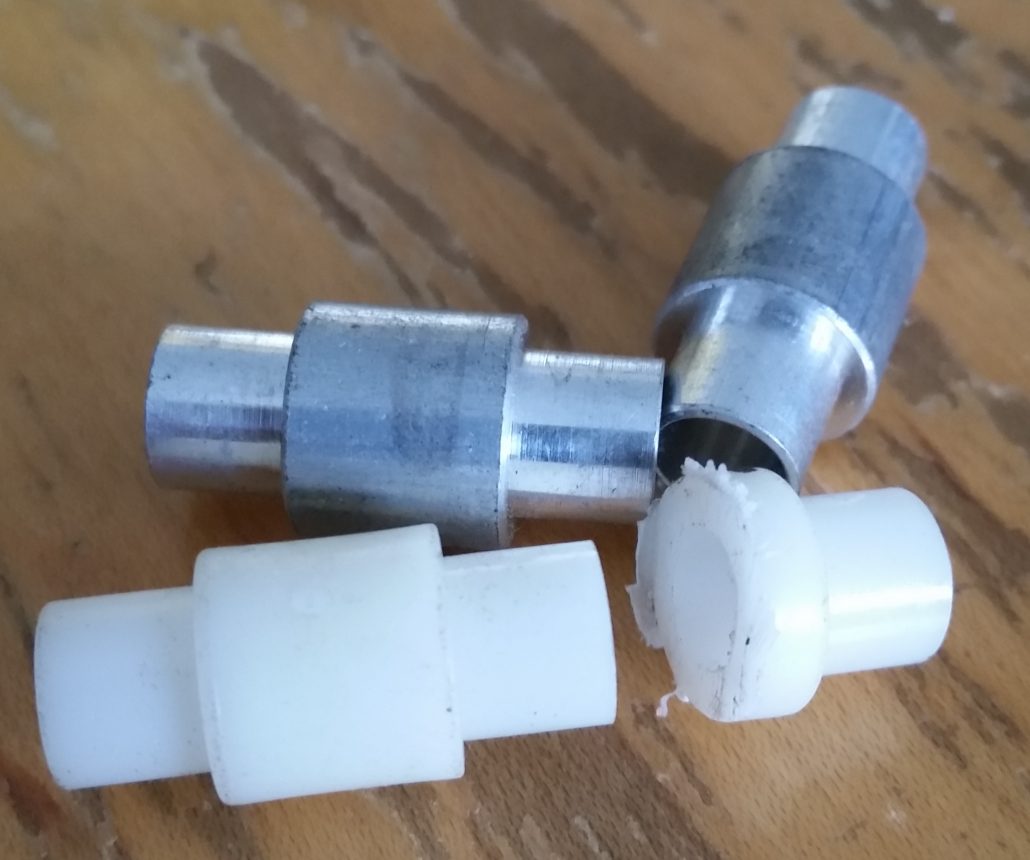

roller blade spacers- half of one used in antenna

3/4″ PVC pipe I grabbed from trash today fits PERFECT!

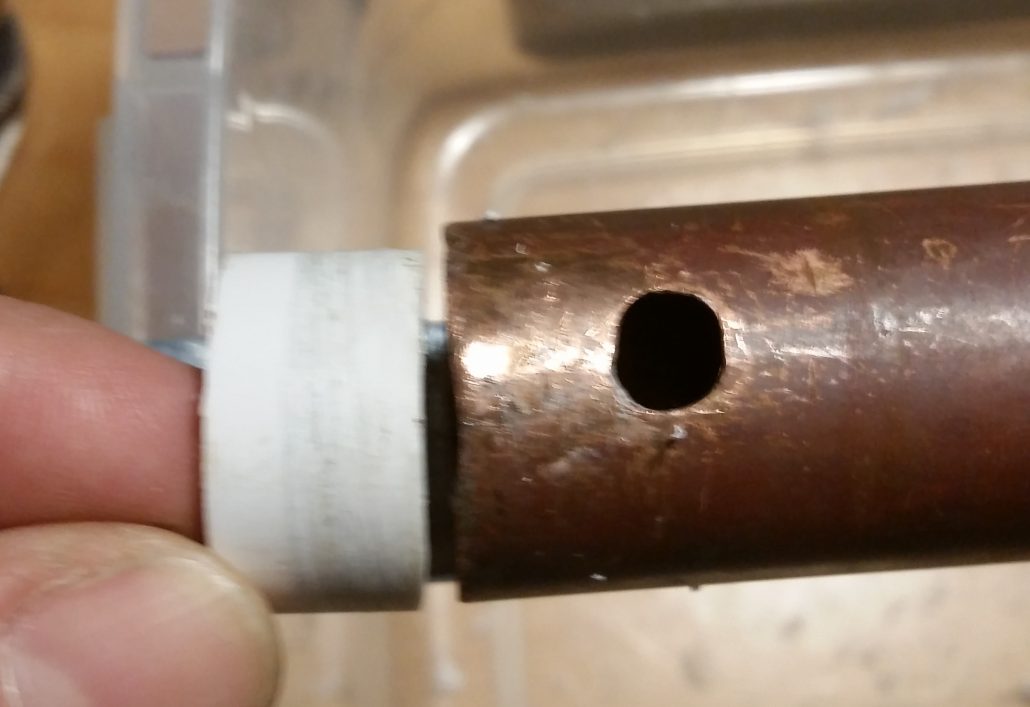

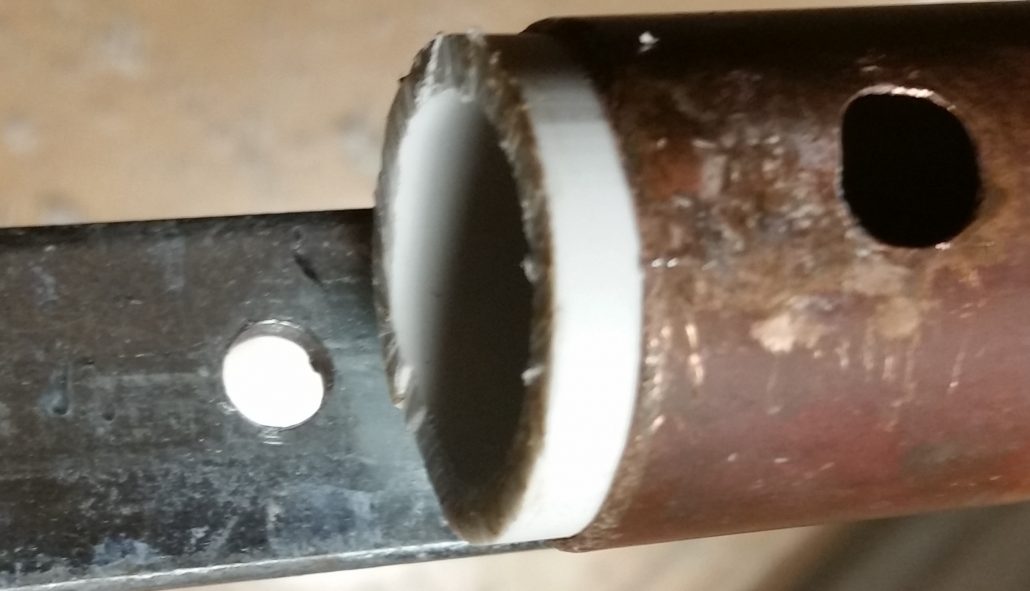

PVC as new insulator

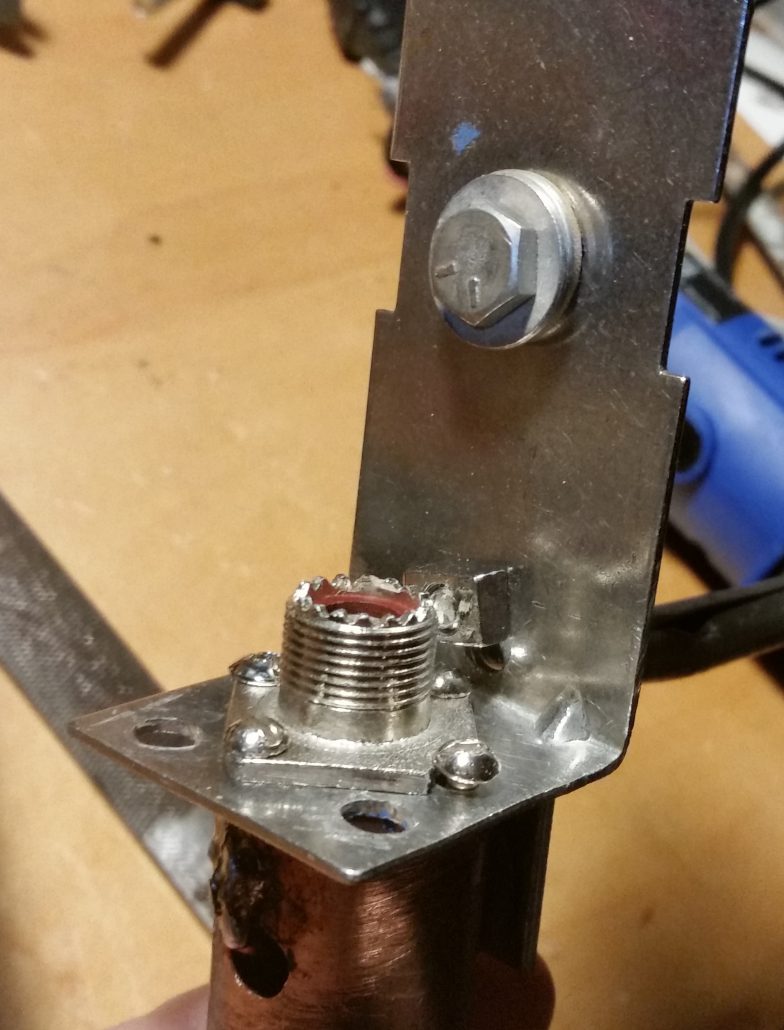

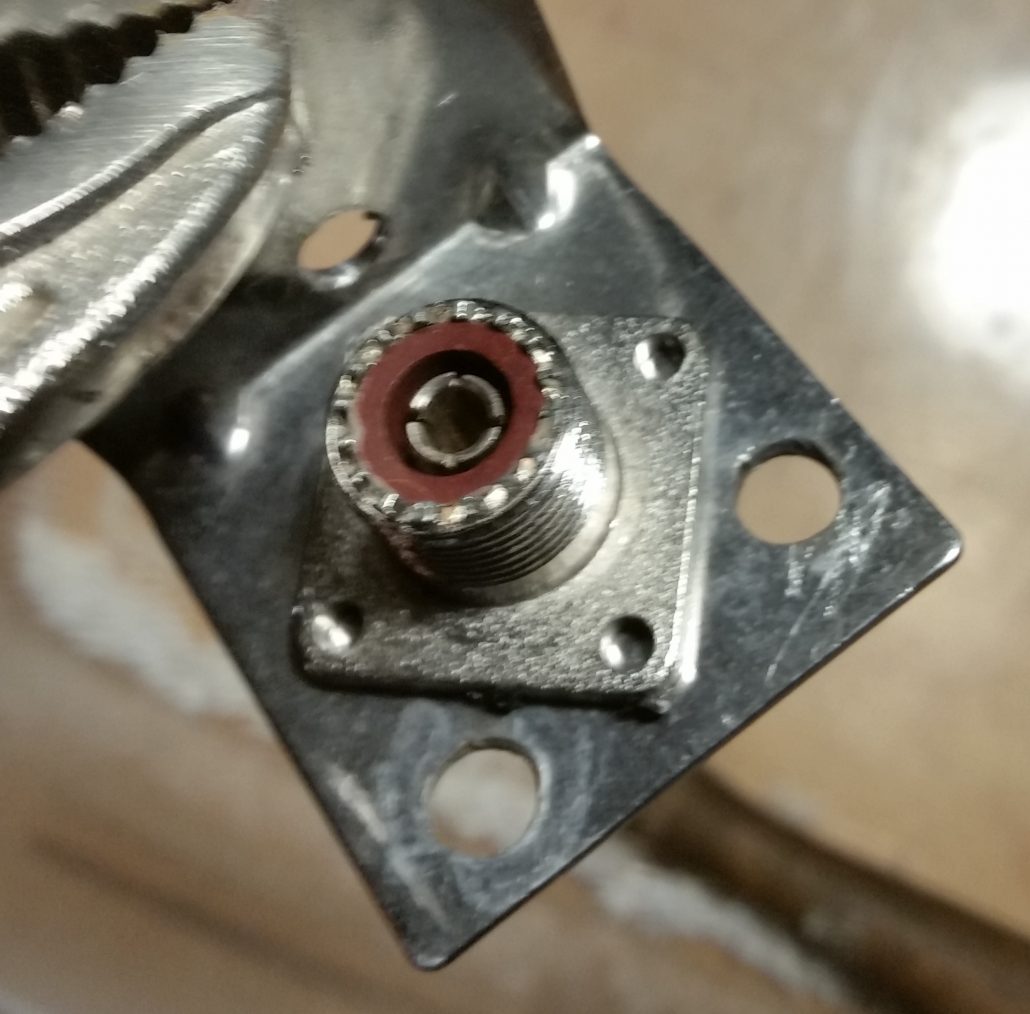

adding SO-239

I really REALLY need better drill bits.

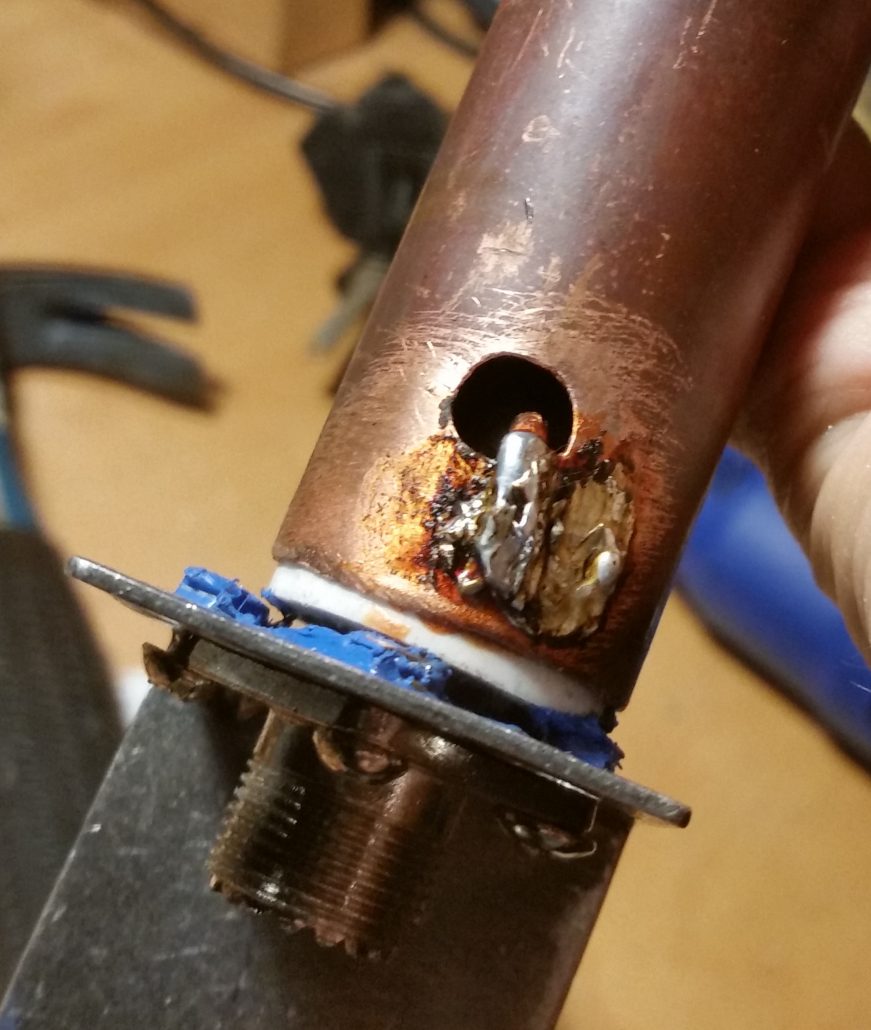

Ugly and needed flux paste but does the job. Sealed w blue RTV.

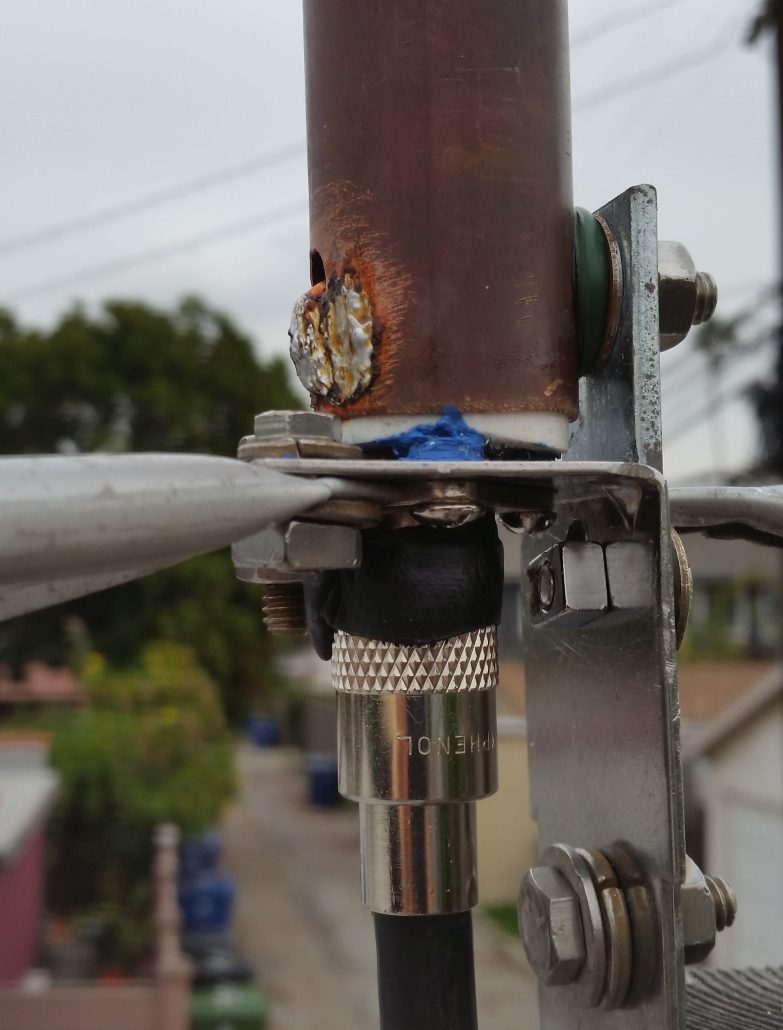

new feed point detail- much nicer w connector
